For all vehicles.

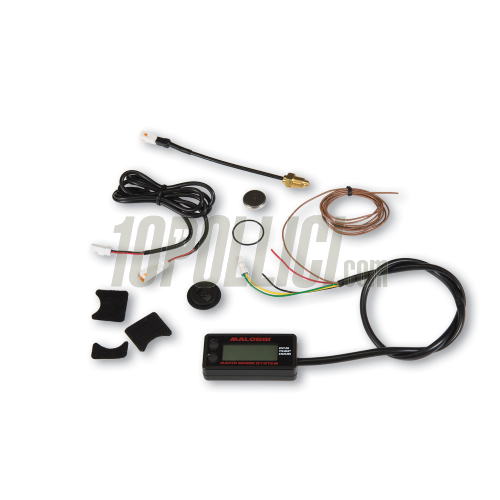

The compact design and the presence of inner batteries allow to use these tools to measure engine parameters on different vehicles. Anyway, if preferred, connecting the charger supplied in the kit directly to a vehicle, it is possible to use the meter only on it.

This only and compact meter allows to monitor three important parameters:

Engine RPM

Cooling Temperature

Engine working Hour

With the RPM function both Max RPM and instantaneous engine RPM can be recorded. The TEMP function will display the cooling temperature. The HOUR function will show of how many hours the engine has been working in order to give precious information about when it is necessary to do maintenance.



Display range: 0 ~ 15.000 Rpm

Display unit: 10 rpm

Display range: -25 ° c ~ 250 ° c (-13 ° f ~ 482 ° f)

Display unit: 0.1 ° C (° f)

Backlight: blue color



Temperature warning

Display will flash when the temperature is higher or equal to the prescribed value.


Total hour meter

Display range: 0 ~ 99999 hours

Display unit: 1 hour


Hour meter a / b:

Display range: 0.0 ~ 999.9 Hours

Display unit: 0,1 hours


Effective voltage: dc 12v

Battery type: cr 2032

Battery life time: 350 hours

Effective temperature range: -10 ° c ~ +60 ° c


Meter size: 69 x 32 x 16

Meter weight: 48g



The device is resistant to a few drops of water, but it is not waterproof (therefore it is not recommended to place it under direct jets of water).
