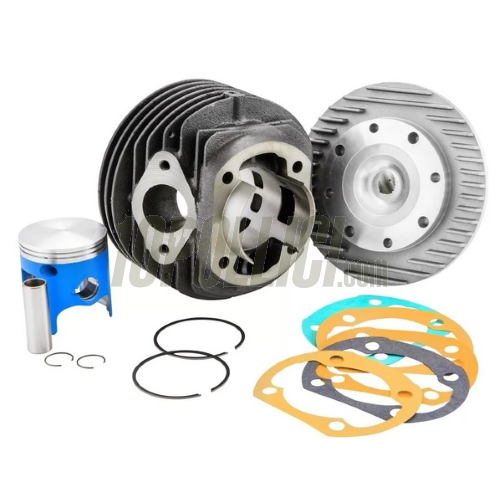

Racing cylinder VMC GS58-S - 135cc, 58x51, cast iron, Vespa Smallframe - side spark plug
Racing cylinder VMC GS58-S - 135cc, 58x51, cast iron, Vespa Smallframe - side spark plug
Users feedback
Description
Bore diameter 58mm Stroke 51mm Displacement 135cc
Timing: Main transfers 124° Unloading 174°
Piston in bi-ring aluminum alloy with high silicon content.
CNC machined die-cast aluminum head
Steel segments Steel pin Steel retainers
Recommended 1.2 mm squish Tightening bolts m6 11-12 Nm, nuts m7 1.4-1.5 Nm
Mounts with 51mm stroke crankshafts and 97mm conrod
Attention: To be mounted on a Piaggio crankcase, a small machining is required on the crescent, as the cylinder has been designed with generous fluid dynamics which requires more space on its base.
Timing: Main transfers 124° Unloading 174°
Piston in bi-ring aluminum alloy with high silicon content.
CNC machined die-cast aluminum head
Steel segments Steel pin Steel retainers
Recommended 1.2 mm squish Tightening bolts m6 11-12 Nm, nuts m7 1.4-1.5 Nm
Mounts with 51mm stroke crankshafts and 97mm conrod
Attention: To be mounted on a Piaggio crankcase, a small machining is required on the crescent, as the cylinder has been designed with generous fluid dynamics which requires more space on its base.
