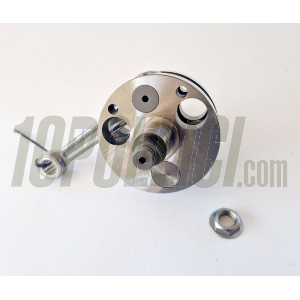

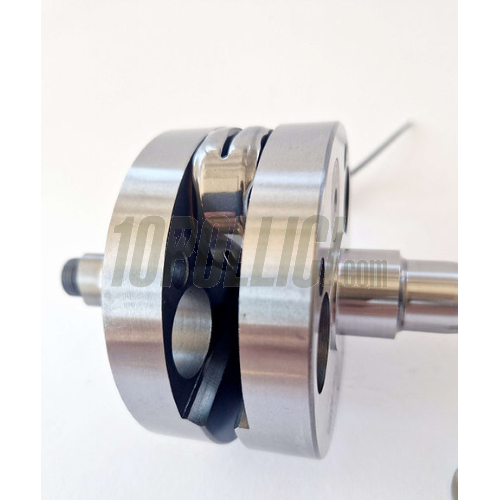

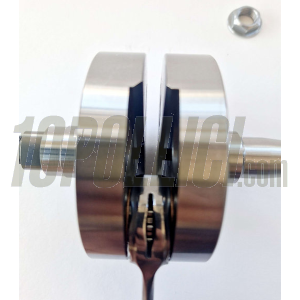

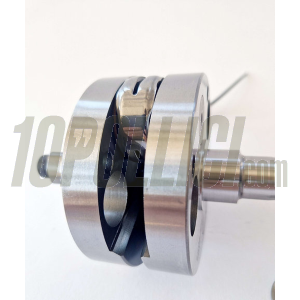

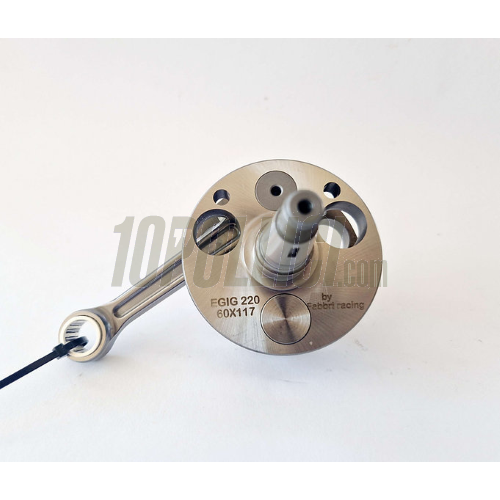

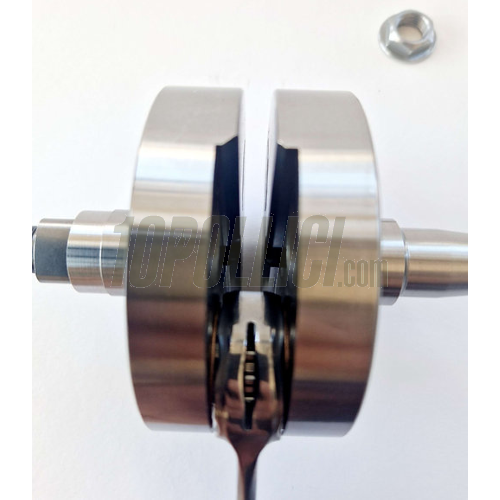

Cranckshaft EGIG 220 - Vespa Smallframe - polygonal
Cranckshaft EGIG 220 - Vespa Smallframe - polygonal
Users feedback
| Price: | €629,76 VAT included (22%) |
|---|---|
| Freight costs: | From € 5,90 VAT included (22%)Details |
| Item code: | 27333 |
| Logo: |  |
| Brand: | EGIG PERFORMANCE |
| ATTENZIONE!: | RACE-USE ONLY |
| Supplier: | Details |
| Weight: | 2,000 Kg |
| Quantity: |
Description
- Connecting rod: 117 mm
- Stroke: 60 mm
- Cone: 20 mm
- Piston pin: 16 mm
- Crankshaft shoulders: 92 mm
- Bearing seats: 25 mm
- Compatible with cylinders: Bore 66-68 mm
- Flywheel side oil seal: 20x35x7 mm
- Clutch side oil seal: 24x35x7 mm
- polygonal on the pinion side
- Shaft shoulder turning diameter: 93 mm
- Connecting rod turning diameter: 96.8 mm
- Stroke: 60 mm
- Cone: 20 mm
- Piston pin: 16 mm
- Crankshaft shoulders: 92 mm
- Bearing seats: 25 mm
- Compatible with cylinders: Bore 66-68 mm
- Flywheel side oil seal: 20x35x7 mm
- Clutch side oil seal: 24x35x7 mm
- polygonal on the pinion side
- Shaft shoulder turning diameter: 93 mm
- Connecting rod turning diameter: 96.8 mm
